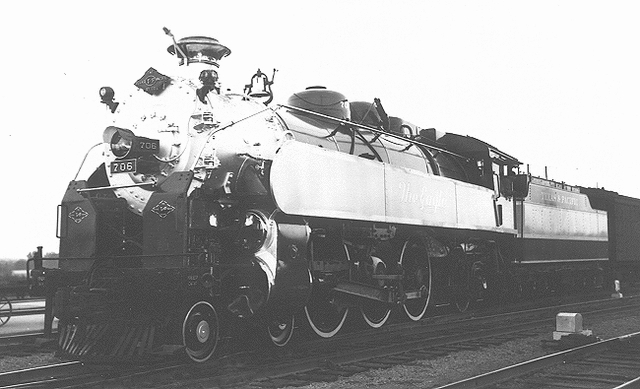

4-6-2 706
Click image to enlarge. Click again in the lightbox to view at 100%.
Specifications
 |
T&P # | 706 |
|---|---|---|
| Class | P-1 | |
| Builder | Baldwin | |
| Build Date | 1919 | |
| Wheel Type | 4-6-2 | |
| Cylinders | 26 X 28 | |
| Drivewheel Dia. | 73 in. | |
| Boiler Pressure | 200 psi | |
| Grate Area | 59.60 in² | |
| Weight | 275,080 lbs. | |
| Tractive Force | 44,200 lbs. | |
| Service | Passenger | |
| Photo Credit | Postcard<BR>Ted Sorrells Collection | |
| Category | Steam Engine | |
| Contact | mailto:[email protected] |
Remarks
Rebuilt in 1938 with roller bearings and classed P-1r
