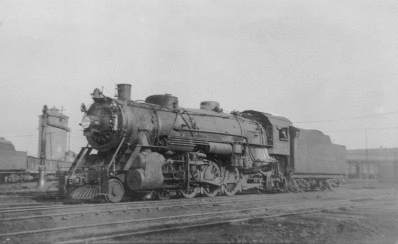

2-8-2 801
Click image to enlarge. Click again in the lightbox to view at 100%.
Specifications
 |
T&P # | 801 |
|---|---|---|
| Class | H-2 | |
| Builder | Baldwin | |
| Build Date | 7-1919 | |
| Wheel Type | 2-8-2 | |
| Cylinders | 26 X 30 | |
| Drivewheel Dia. | 63 in. | |
| Boiler Pressure | 200 psi | |
| Grate Area | 66.70 in² | |
| Weight | 292,000 lbs. | |
| Tractive Force | 54,700 lbs. | |
| Service | Freight | |
| Category | Steam Engine |
