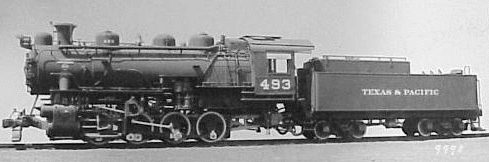

0-8-0 493
Click image to enlarge. Click again in the lightbox to view at 100%.
Specifications
 |
T&P # | 493 |
|---|---|---|
| Class | C-2 | |
| Builder | Baldwin | |
| Build Date | 5-1927 | |
| Wheel Type | 0-8-0 | |
| Cylinders | 22 X 28 | |
| Drivewheel Dia. | 51 in. | |
| Boiler Pressure | 250 psi | |
| Grate Area | 53.40 in² | |
| Weight | 228,530 lbs. | |
| Tractive Force | 54,500 lbs. | |
| Service | Switcher | |
| Category | Steam Engine |
