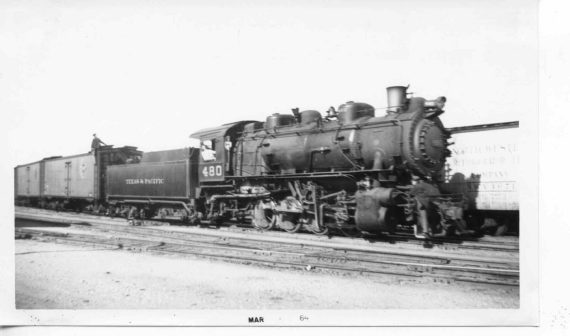

Steam Locomotive #480
Wheel arrangement: 0-8-0
Specifications
 |
T&P # | 480 |
|---|---|---|
| Class | C-2a | |
| Builder | Baldwin | |
| Build Date | 1-1926 | |
| Wheel Type | 0-8-0 | |
| Cylinders | 22 X 28 | |
| Drivewheel Dia. | 51 in. | |
| Boiler Pressure | 250 psi | |
| Grate Area | 53.40 in² | |
| Weight | 230,500 lbs. | |
| Tractive Force | 54,500 lbs. | |
| Service | Switcher |
