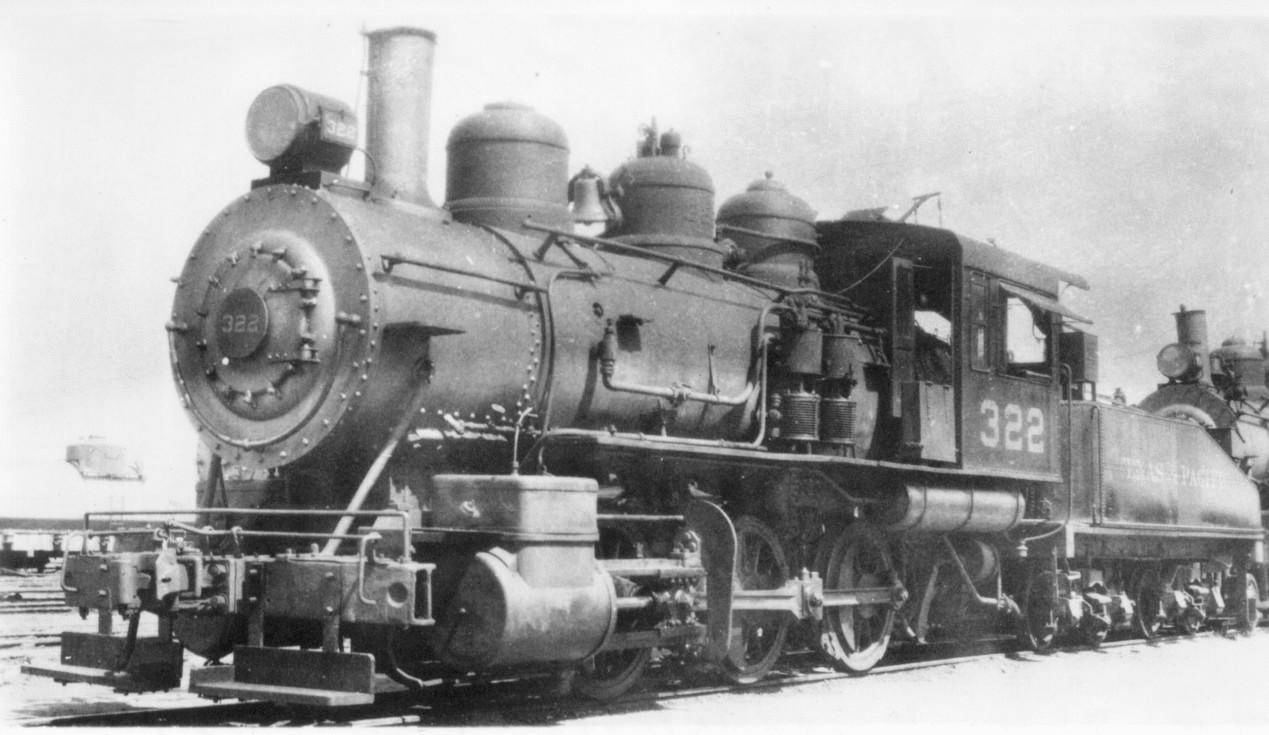

0-6-0 322
Click image to enlarge. Click again in the lightbox to view at 100%.
Specifications
 |
T&P # | 322 |
|---|---|---|
| Class | B-6 | |
| Builder | A-Cooke | |
| Build Date | 11-1902 | |
| Wheel Type | 0-6-0 | |
| Cylinders | 20 X 26 | |
| Drivewheel Dia. | 52 in. | |
| Boiler Pressure | 175 psi | |
| Grate Area | 31.50 in² | |
| Weight | 130,000 lbs. | |
| Tractive Force | 30,400 lbs. | |
| Service | Switcher | |
| Photo Credit | 0-6-0 322 by Bud Laws | |
| Category | Steam Engine | |
| Contact | mailto:[email protected] |
Remarks
To GH. 322, Intnl Creosot 6
